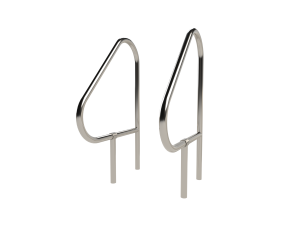

TruPro Adjustable Figure 4 Handrail
The TruPro Adjustable Figure 4 Handrail delivers the same compact, dependable support of our classic Figure 4 - now with added installation flexibility. Designed to accommodate anchor spacing from 4.5" to 18.5", it’s an ideal solution for retrofit projects or applications where anchor placement isn’t standard. Constructed from corrosion-resistant stainless steel, it’s built for long-term durability in both residential and commercial environments.
Its space-saving, deck-mounted design keeps the swim zone clear, making it well suited for compact decks and high-traffic pool areas. The familiar Figure 4 profile provides a smooth, intuitive grip that follows natural movement to reduce wrist strain and support confident entry and exit.
- Corrosion-resistant stainless steel construction
- Marine-grade stainless option available for saltwater or heavily chlorinated environments
- Adjustable anchor spacing accommodates 4.5"–18.5" for flexible installation
- Sturdier build than standard 3-bend rails for enhanced stability and performance
- Deck-mounted design extends over the pool edge for secure handhold placement
- ADA-compliant when installed with specified anchors
- Polished stainless steel finish for durability and easy cleaning
- Sold in pairs. Anchors and escutcheons sold separately.
Catalog Part Numbers:
- TGR-A426-461 - ADJUSTABLE FIGURE 4 GRAB RAIL - 26.00" SETBACK - 1.50" OD X .120 WALL - 316LSS
- TGR-A426-141 - ADJUSTABLE FIGURE 4 GRAB RAIL - 26.00" SETBACK - 1.90" OD X .065 WALL - 304LSS
- TGR-A426-241 - ADJUSTABLE FIGURE 4 GRAB RAIL - 26.00" SETBACK - 1.90" OD X .109 WALL - 304LSS
No FAQs for this product.
- OD options: 1.50" and 1.90"
- Wall options: .065, .109, and .120
- Material options: 304 stainless steel and 316 stainless steel
